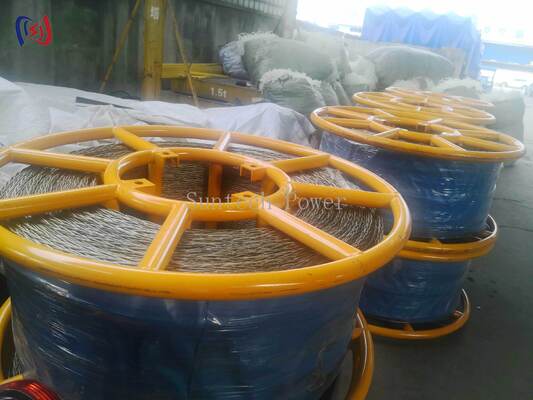

Name: Heavy Duty 12 Strand/18 Strand Anti-Twisting Braided Steel Rope with 9-42mm Diameter and 54-817KN Breaking Force for Crane and Rigging
Brand: Ningbo Suntech Power Machinery Tools Co.,Ltd.
SKU: 12 -18 رشته
Price: 285,715.00 USD
Availability: InStock

امکانات گالری توضیحات محصول درخواست نقل قول

امکانات

مشخصات

نام: طناب فولادی ضد پیچ و خم

شماره مورد: 18117-18156

ساختار: 12 رشته/18 رشته

قطر: 9-42 میلی متر

نیروی شکستن: > 54-> 817KN

وزن: 0.3-4.08 کیلوگرم بر متر

برجسته کردن:

12 Strand/18 Strand Anti Twist Wire Rope,9-42mm Diameter Braided Steel Rope,54-817KN Breaking Force Anti-Twisting Braided Steel Rope

9-42mm Diameter Braided Steel Rope

54-817KN Breaking Force Anti-Twisting Braided Steel Rope

اطلاعات اولیه

محل منبع: ننگو

نام تجاری: Suntech

گواهی: ISO

شماره مدل: 12 -18 رشته

پرداخت

جزئیات بسته بندی: مورد تخته سه لا

زمان تحویل: 3-7 روز

شرایط پرداخت: L/C، T/T

قابلیت ارائه: 300000 متر در ماه

گالری

Heavy Duty 12 Strand/18 Strand Anti-Twisting Braided Steel Rope with 9-42mm Diameter and 54-817KN Breaking Force for Crane and Rigging

توضیحات محصول

Heavy Duty Anti Twisting Braided Steel Rope

Engineered for crane and rigging applications in power construction, this advanced braided steel rope delivers exceptional stability and safety for precision lifting operations.

Product Specifications

Item Number	Structure	Diameter	Breaking Force	Weight
18117	12 Strand	9	≥54	0.3
18118	12 Strand	11	≥81	0.45
18119	12 Strand	13	≥115	0.58
18120	12 Strand	15	≥157	0.82
18121	12 Strand	18	≥205	1.03
18122	12 Strand	20	≥260	1.33
18123	12 Strand	23	≥320	1.63
18124	12 Strand	25	≥387	2.03
18125	12 Strand	27	≥461	2.37
18126	12 Strand	28	≥520	2.6
18127	12 Strand	30	≥560	3.12
18140	18 Strand	21	≥173	0.87
18141	18 Strand	24	≥236	1.24
18151	18 Strand	27	≥309	1.55
18152	18 Strand	30	≥389	1.99
18153	18 Strand	33	≥481	2.45
18154	18 Strand	36	≥581	3.05
18155	18 Strand	39	≥692	3.56
18156	18 Strand	42	≥817	4.22

Advanced Engineering for Power Construction

This anti-twisting braided steel rope represents a significant advancement in lifting technology specifically designed for the demanding requirements of the power construction industry. Unlike standard twisted wire ropes that rotate under load, our specially engineered rope features a unique braided construction that effectively counteracts rotational forces, ensuring exceptional stability when handling suspended loads.

Key Performance Features

Superior Anti-Rotation Performance

The braided construction balances internal forces to resist twisting and spinning when supporting suspended loads, ensuring stable operation and preventing dangerous rotation of sensitive electrical equipment.

Enhanced Lifting Safety and Control

Minimizes load rotation to provide better control over movement and orientation, reducing accident risks in confined spaces or over live electrical equipment.

Exceptional Flexibility and Handling

Offers excellent flexibility despite high strength, making the rope easier to handle, coil, and bend over sheaves with smaller radius, extending service life.

High Tensile Strength and Durability

Manufactured from high-grade steel wires to handle the heaviest power construction loads while resisting abrasion, crushing, and mechanical damage.

Reduced Wear and Extended Service Life

Anti-rotation properties minimize internal friction and external abrasion, leading to longer operational life and lower replacement costs.

Corrosion Resistance for Harsh Environments

Available with protective zinc galvanization for excellent corrosion resistance in outdoor, coastal, or industrial settings with moisture and chemical exposure.

Versatile Power Industry Applications

Ideal for transmission tower assembly, substation equipment installation, conductor stringing, and any lifting task requiring load stability.

Improved Workflow Efficiency

Enables accurate load positioning on first attempt, reducing adjustment time and leading to faster project completion with lower labor costs.

Compliance with Industry Standards

Manufactured to meet or exceed international safety and quality standards for lifting equipment, ensuring regulatory compliance.

Investing in Anti Twisting Braided Steel Rope represents a commitment to personnel safety, asset protection, and professional lifting operations. This cost-effective solution mitigates risk and ensures success in critical power construction lifts.
