Heavy Duty Powered Winch with 3-8T Tractive Force and 4-11M/Min Traction Speed for Cable Pulling

1 عدد
MOQ
negotiable
قیمت
Heavy Duty Powered Winch with 3-8T Tractive Force and 4-11M/Min Traction Speed for Cable Pulling
امکانات گالری توضیحات محصول درخواست نقل قول
امکانات
مشخصات
نام: وینچ برقی
شماره مورد: 09121-09125a
مدل: JJQ-30
جهت چرخش: Corntation / معکوس
سرعت چرخشی: 9-16 دور در دقیقه
سرعت کشش: 4-11 میلیون در دقیقه
نیروی کشش: 3-8T
قدرت: 4.04-9.6kW
وزن: 82-230 کیلوگرم
گارانتی: 1 سال
برجسته کردن:

Heavy Duty Powered Winch,3-8T Tractive Force Winch,4-11M/Min Traction Speed Winch

,

3-8T Tractive Force Winch

,

4-11M/Min Traction Speed Winch
اطلاعات اولیه
محل منبع: ننگو
نام تجاری: Suntech
گواهی: ISO
شماره مدل: JJQ-30
پرداخت
جزئیات بسته بندی: مورد تخته سه لا
زمان تحویل: 3-7 روز
شرایط پرداخت: T/T، L/C
قابلیت ارائه: 1000 قطعه در ماه
توضیحات محصول
Heavy Duty Powered Winch for Cable Pulling and Conductor Stringing
Essential mechanized equipment for power line construction, providing controlled pulling and lifting capability for demanding applications in the modern power industry.
Product Specifications
Item No. Model Rotation Direction Gear Rotational Speed (BPM) Traction Speed (M/MIN) Tractive Force (T) Power (KW) Outline Size (MM) Weight (KG)
09121B JJD-30 3KW Electromotor Corotation I slow 8.5 4.0 3.0 3.00 770*600*460 108
Ⅱ fast 10.5 6.5 1.8
Reversal reverse 7.0 3.0 No lifting
09123B JJD-50 4KW Electromotor Corotation I slow 5.5 3.5 5.0 4.00 1000*850*520 160
Ⅱ fast 14.0 8.0 3.0
Reversal reverse 7.0 4.0 No lifting

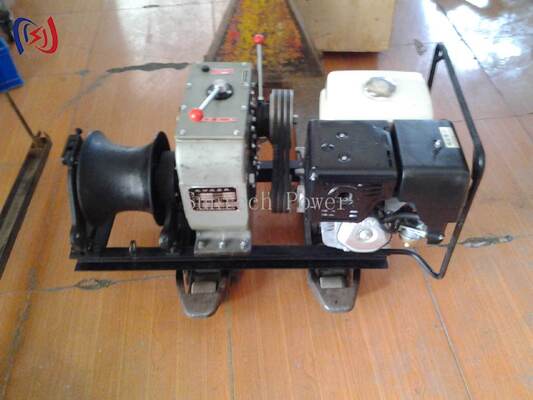

Heavy Duty Powered Winch with 3-8T Tractive Force and 4-11M/Min Traction Speed for Cable Pulling 0
Powered Winch Applications & Benefits
Powered winches utilize electric, hydraulic, or diesel motors to generate significant force, dramatically increasing efficiency and enabling the handling of extremely heavy loads that would be impossible with manual equipment. These industrial workhorses combine raw power with operational control for power construction projects.
Significant Force Generation: Produces immense pulling force consistently for heavy conductors, equipment recovery, and lifting operations.
Improved Operational Efficiency: Dramatically accelerates work processes, reducing labor costs and project completion times.
Precise Load Control: Variable speed operation allows gentle starts, tension-based adjustments, and precise positioning.
Enhanced Safety: Reduces physical strain and injury risk with remote control operation away from potential hazards.
Durability for Harsh Conditions: Heavy-duty steel frames, robust gear systems, and weather-resistant components ensure reliable performance.
Versatile Applications: Suitable for tension stringing, underground cable installation, substation equipment positioning, and storm recovery.
Portable Deployment: Flexible configurations allow transport on trucks or trailers with mounting to sturdy anchor points.
Modern Construction Essential: Enables advanced power construction techniques that are faster, safer, and higher quality.
Reduced Labor Fatigue: Allows crews to focus on supervision and skilled tasks while maintaining safety protocols.
Strategic Investment: Expands project capabilities, improves competitiveness, and demonstrates commitment to professional-grade equipment.
By selecting a properly specified Powered Winch, you invest in a tool that increases your team's capability, safety, and efficiency across power construction and maintenance challenges, making it a cornerstone of modern electrical infrastructure work.
