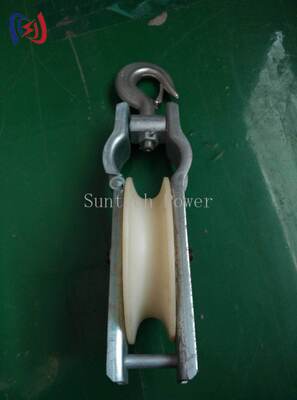

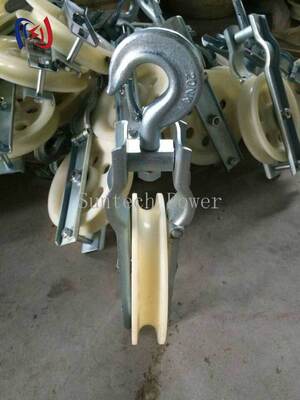

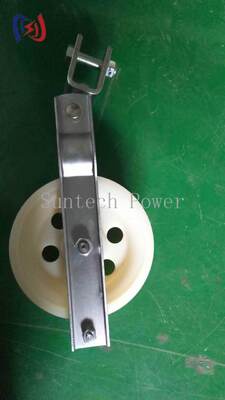

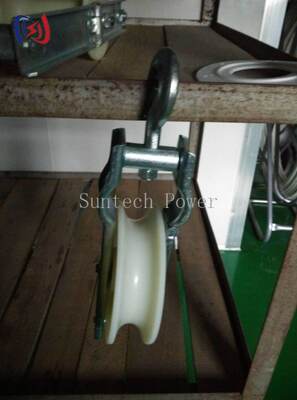

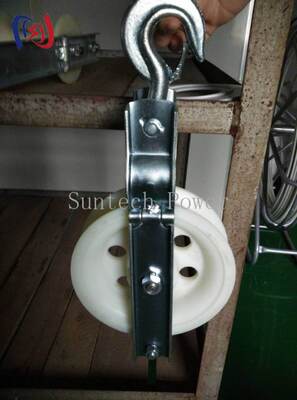

Professional Single Sheave Stringing Block with 5-20KN Rated Load, Aluminum Sheave for LGJ25-500 Conductor Installation

1 عدد
MOQ
negotiable
قیمت
Professional Single Sheave Stringing Block with 5-20KN Rated Load, Aluminum Sheave for LGJ25-500 Conductor Installation
امکانات گالری توضیحات محصول درخواست نقل قول
امکانات
مشخصات
نام: بلوک رشته ای تک شیو
مدل: SHD
هادی قابل اجرا: LGJ25-500
بار رتبه بندی شده: 5-20 KN
وزن: 1.5-15 کیلوگرم
گارانتی: 1 سال
اطلاعات اولیه
محل منبع: نینگبو
نام تجاری: Suntech
گواهی: ISO
شماره مدل: SHD
پرداخت
جزئیات بسته بندی: کیس تخته سه لا
زمان تحویل: 3-7 روز
شرایط پرداخت: L/C، T/T
قابلیت ارائه: 3000 PCS در ماه
توضیحات محصول
Professional Single Sheave Stringing Block
The Professional Single Sheave Stringing Block is engineered for efficient overhead conductor and cable installation, providing a reliable solution for electrical power line construction and maintenance.
Product Specifications
Item Number Model Suitable Conductor Rated Load (KN) Weight (kg) Remark
10171SHD-120*30LGJ25~7051.5Aluminium sheave
10172SHD-160*40LGJ95~120102.5
10173SHD-200*40LGJ150~240154
10174SHD-200*60LGJ150~240154.6
10175SHD-250*40LGJ150~240204.6
10176SHD-250*60LGJ300~400206
10177SHD-270*60LGJ300~400207
10178SHD-320*60LGJ300~400209.5
10179SHD-400*80LGJ400~5002015
10191SHDN-120*30LGJ25~7051.5Nylon sheave
10192SHDN-160*40LGJ95~120102.5
10193SHDN-200*40LGJ150~240153.6
10194SHDN-200*60LGJ150~240154
10195SHDN-250*40LGJ150~240204
10196SHDN-250*60LGJ300~400204.5
10197SHDN-270*60LGJ300~400205.6
10198SHDN-320*60LGJ300~400206.7
10198-1SHDN-320*80LGJ300~400208
10199SHDN-400*80LGJ400~5002013
10199-1SHDN-400*100LGJ400~5002015
10199-2SHDN-400*120LGJ400~5002018
Product Overview
The Single Sheave Stringing Block is a fundamental and indispensable tool in the construction and maintenance of overhead electrical power lines. This simple yet highly effective mechanical device consists of a robust frame housing a single, large-diameter wheel (the sheave) mounted on high-quality bearings. The sheave features a precisely machined groove designed to cradle specific sizes and types of electrical conductors or cables.
Key Features & Benefits
Smooth, Low-Friction Path: Provides minimal resistance for cable installation, reducing pulling force requirements and enabling smoother, faster operations.
Cable Protection: Cradles cables in smooth grooves to prevent jacket abrasion, crushing, and damage to internal conductive strands or optical fibers.
Essential Construction Tool: Industry-standard equipment for installing new power lines, replacing conductors, and performing maintenance repairs.
Enhanced Safety: Reduces physical strain and prevents dangerous situations like cable snap-back or uncontrolled whipping.
Precision Tension Control: Enables fine adjustments for exact sag setting according to engineering specifications.
Durable & Lightweight: Constructed from high-strength aluminum alloy for corrosion resistance and easy handling.
Versatile Application: Available in various sizes to accommodate different cable types including ACSR conductors, all-aluminum wires, and OPGW.
Professional Quality: Demonstrates commitment to industry best practices and quality workmanship.
Cost Efficiency: Reduces labor time, equipment strain, and cable replacement costs for improved project economics.
Infrastructure Reliability: Supports the development of durable power infrastructure with 40-50 year design life expectancy.
The Single Sheave Stringing Block represents practical engineering excellence, converting sliding friction into rolling friction to protect assets, conserve energy, enhance safety, and enable precision. This essential tool proves that the most reliable solutions are often the most straightforward, making it indispensable for professional overhead electrical construction.
